Handheld ultrasonic time transit flowmeter flow meter

FOB Reference Price:Get Latest Price
US $100-3,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
METERY
Model Number:
MT100H
Product name:
Doppler Flow Meter
Sort:
Handheld ultrasonic time transit flowmeter flow meter
Accuracy:
±1%
Origin:
Dalian
Caliber:
DN15-700mm
Customized:
Accepted
Model:
MT101HU
Port:
Dalian
Package:
Cartons
web:
www.meterytech.com
Supply Ability
Supply Ability:
100 Set/Sets per Day
Packaging & Delivery
Packaging Details
Cartons of Handheld ultrasonic time transit flowmeter flow meter
Port
Dalian
Lead Time :
Shipped in 7 days after payment

 photobank(24)



Email:  info(AT)metery-tech.com

                                 www.meterytech.com



Picture of Doppler Flow Meter Flowmeter Handheld ultrasonic time transit flowmeter flow meter

handheld





Installation Field of Users



handheld measurement





Installation Diagram



install.pipe2install.pipeinstall







Optional Sensors

clampsensor





Features of our handheld ultrasonic flowmeter

  • Accuracy can reach ±1%
  • Four rows of characters display instantaneous flow rate, flow velocity, the cumulative flow, signal state, etc
  • Built-in data recorder, can record dates, cumulative flow, signal condition,
  • working time, etc
  • OCT output positive, negative, cumulative net pulse signal and the frequency signal (1-9999Hz optional)
  • RS232 interface is used to glue network detection or export recorded data
  • Suitable for all variable sizes of pipes’ flow metering
  • The velocity measuring range 0.01 ~ + 32 m/s
  • Suitable for measuring water, sea water, sewage, alcohol, such as various oil evenly, single, stable liquid
  • Suitable for steel, stainless steel, cast iron, PVC, FRP, etc. uniform and compact of pipeline
  • Upstream of straight pipe section should satisfy 10D, downstream 5D, 30D to the pump outlet (D refers to the pipe diameter)
  • Built-in Ni-MH rechargeable battery can work continuously more than 10 hours
  • Small size (220×92×32mm), portable weight (538g)



Optional sensors (Pictures only for reference):






Standard small stents sensor (magnetic)                Standard medium stents sensor (magnetic)

Applicable caliber DN15-100mm                                   Applicable caliber DN50-700mm

Fluid temperature ≤110°C                                              Fluid temperature ≤110°C

Overall dimension 200×25×25mm                                 Overall dimension 280×40×40 (2Ps)

Handle length 100mm



Standard large sensor                                                 Standard large sensor (magnetic)

Applicable caliber DN300-600mm                                 Applicable caliber DN50-700mm

Fluid temperature ≤110°C                                             Fluid temperature ≤110°C

Overall dimension 80×70×55mm                                  Overall dimension 60×45×45mm



Standard configurations

Aluminum alloy protection case (470×380×110mm)

The host

Standard medium sensor

Signal cable 5m×2 (10m×2 optional)







Customer visiting

fixed ultrasonic flow meterjpg





International Certifiates

555





Factory View

fixed ultrasonic flow meterjpg

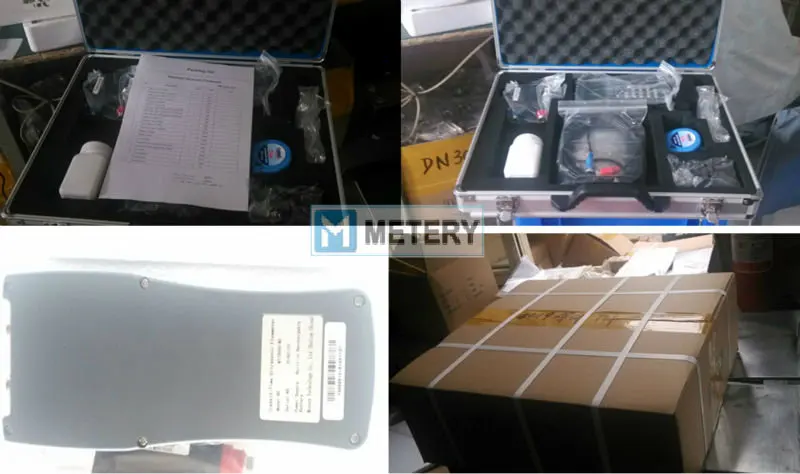

Packing for Shipment

handheld.3

3
