24VDC Compensation SS304 Steam Vortex Flow Meter

FOB Reference Price:Get Latest Price
$500.00 - $2,000.00 / Sets | 1 Set/Sets (Min. Order)
Material:
SS304
Accuracy:
1.5%
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
METERY TECH.
Model Number:
MT100VX
Standard or Nonstandard:
Standard
Theory:
Vortex
Sort:
24VDC Compensation SS304 Steam Vortex Flow Meter
web:
www.meterytech.com
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case of 24VDC Compensation SS304 Steam Vortex Flow Meter
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Video Description
Picture of  24VDC Compensation SS304 Steam Vortex Flow Meter







Installation Field of Users

Product Description
Parameter of vortex flow meter
Measured Mediumsliquids, gases and steams (NOTE: the mediums should be unidirectional or can be seen as unidirectional.)
When the dryness of saturated steams ≥85%, they can be seen as unidirectional.
Temperature of Mediums- 40°C ~ + 350°C
Pressure of Mediums1.6MPa, 2.5MPa, 4.0 MPa
For over 4.0 MPa, please contact us freely, for it needs special customization.
Accuracy1.0; 1.5
Span Rate1:8 ~ 1:30(compared with the standard atmospheric pressure)
1:8 ~ 1:40 ( compared with the nominal temperature water)
Flow RangeLiquids: 0.4 ~ 7.0 m/s
Gases: 4.0 ~ 60.0 m/s
Steams: 5.0 ~ 70.0 m/s
Nominal DiameterDN 25, 40, 50, 65, 80, 100, 125, 150, 200, 250,300 mm
Materials1Cr18Ni9Ti
Reynolds No.Normally, 2*104 ~ 7*106
Resistance CoefficientCd ≤ 2.6
Licensed Vibration AccelerationLUGB type ≤ 0.2g
Class of ProtectionIP65
Class of Explosion-ProofIntrinsically Safe Explosion-Proof: Exia II CT2 ~ CT6
Explosion Suppression: Exid II CT4
Conditions of SurroundingsTemperature of Surroundings:Non-Explosion Proof Surroundings: -40°C~ +55°C
Explosion-Proof Surroundings: -20°C~ +55°C
Relative Humidity:≤ 85%
Atmospheric Pressure:86 ~ 106 kPa
Power SupplyNon-Explosion Proof TypePulse type:+12 VDC ( the output current is 4 ~ 20mA)
Current type:+24 VDC ( the output current is 4~ 20mA)
Explosion-Proof TypeCurrent type:+24 VDC ( the output current is 4~20mA)
Output SignalFrequency pulse signal 2~3000Hz, low level voltage ≤1V, high level voltage ≥ 6V
Two-wire system 4 ~ 20mA signal (isolation output), load ≤ 500Ω.



Measure range of vortex flow meter
Diameter (mm)WaterGases in the Normal Temperature and Pressure
Range of Standard Measurement (m3/h)Range of Standard Measurement (m3/h)
  25  2 ~ 16  8~60
  32  1.5~15  14~100
  40  3~30  18~180
  50  4~40  30~300
  65  6~60  50~500
  80  13~130  70~700
  100  20~200  100~1000
  125  36~360  150~1500
  150  50~500  200~2000
  200  100~1000  400~4000
  250  150~1500  600~6000
  300  200~2000  1000~10000

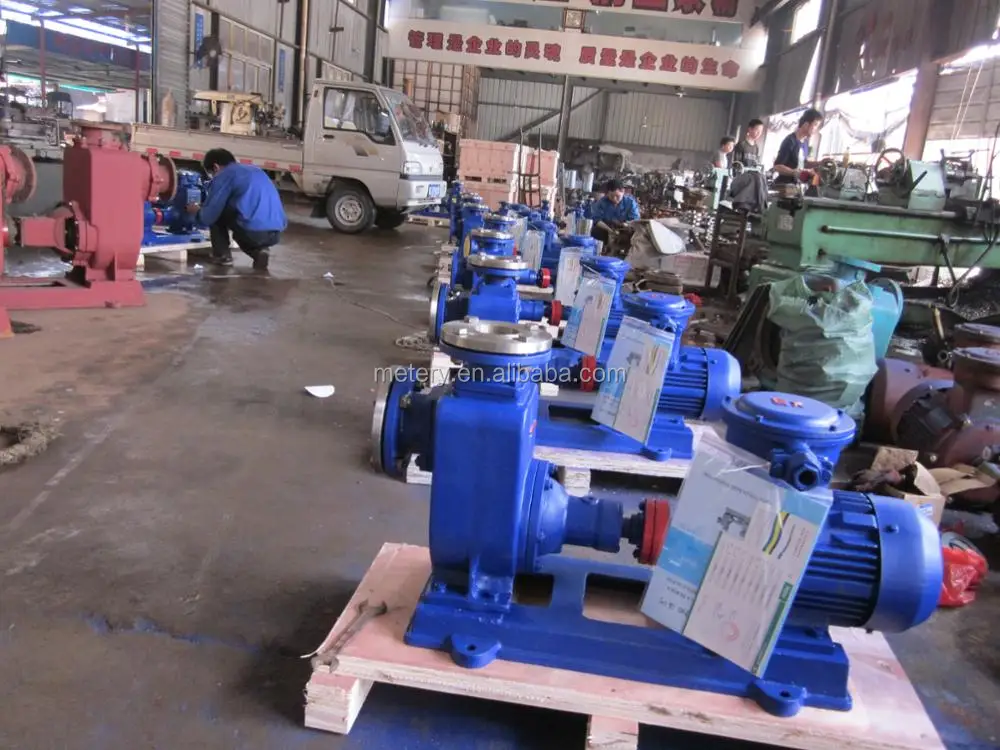

 Workshop and warehouse



Electrical Wiring Diagram





Installation cautions

  Pipes must be fully filled with liquids, it is essential that pipes remain fully filled at all times, other ise flow rate

indications may be affected and measurement errorsmay be caused.





  Avoids air bubbles. if air bubbles enter a measurement pipe, flow rate indications may be affected and measurement

errors may be caused.









International certificates of our flowmeter

  In order promote our qualification and credit for servicing our users, we apply and pass the related field authority certificates.



Packing for Shipment
