coal gas vortex flowmeter

FOB Reference Price:Get Latest Price
US $200-2,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
METERY
Model Number:
MT100VX
Product Name:
coal gas vortex flowmeter
Measured Mediums:
liquids, gases and steams
Pressure of Mediums:
1.6MPa, 2.5MPa, 4.0 MPa
Output Signal:
pulse or 4-20mA
Temperature of Mediums:
- 40°C ~ + 350°C
Power Supply:
+12-24VDC
Diameter:
DN25-300mm
Accuracy::
1.0; 1.5
Flow Range:
Gases: 4.0 ~ 60.0 m/s;Steams
web:
www.meterytech.com
Supply Ability
Supply Ability:
100 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Carton of coal gas vortex flowmeter
Port
Dalian
Video Description

 photobank(24)

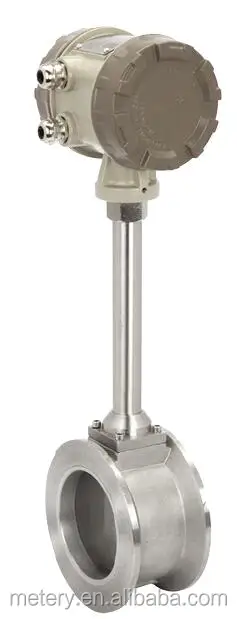

Picture of  compensation coal gas vortex  flowmeter





vortex.1vortex.3





Installation Field of Users

Vortex1

1

Product Description
Parameter of vortex flow meter
Measured Mediumsliquids, gases and steams (NOTE: the mediums should be unidirectional or can be seen as unidirectional.)
When the dryness of saturated steams ≥85%, they can be seen as unidirectional.
Temperature of Mediums- 40°C ~ + 350°C
Pressure of Mediums1.6MPa, 2.5MPa, 4.0 MPa
For over 4.0 MPa, please contact us freely, for it needs special customization.
Accuracy1.0; 1.5
Span Rate1:8 ~ 1:30(compared with the standard atmospheric pressure)
1:8 ~ 1:40 ( compared with the nominal temperature water)
Flow RangeLiquids: 0.4 ~ 7.0 m/s
Gases: 4.0 ~ 60.0 m/s
Steams: 5.0 ~ 70.0 m/s
Nominal DiameterDN 25, 40, 50, 65, 80, 100, 125, 150, 200, 250,300 mm
Materials1Cr18Ni9Ti
Reynolds No.Normally, 2*104 ~ 7*106
Resistance CoefficientCd ≤ 2.6
Licensed Vibration AccelerationLUGB type ≤ 0.2g
Class of ProtectionIP65
Class of Explosion-ProofIntrinsically Safe Explosion-Proof: Exia II CT2 ~ CT6
Explosion Suppression: Exid II CT4
Conditions of SurroundingsTemperature of Surroundings:Non-Explosion Proof Surroundings: -40°C~ +55°C
Explosion-Proof Surroundings: -20°C~ +55°C
Relative Humidity:≤ 85%
Atmospheric Pressure:86 ~ 106 kPa
Power SupplyNon-Explosion Proof TypePulse type:+12 VDC ( the output current is 4 ~ 20mA)
Current type:+24 VDC ( the output current is 4~ 20mA)
Explosion-Proof TypeCurrent type:+24 VDC ( the output current is 4~20mA)
Output SignalFrequency pulse signal 2~3000Hz, low level voltage ≤1V, high level voltage ≥ 6V
Two-wire system 4 ~ 20mA signal (isolation output), load ≤ 500Ω.



Measuring range of vortex flow meter MT100VX

Measure range of vortex flow meter
Diameter (mm)WaterGases in the Normal Temperature and Pressure
Range of Standard Measurement (m3/h)Range of Standard Measurement (m3/h)
  25  2 ~ 16  8~60
  32  1.5~15  14~100
  40  3~30  18~180
  50  4~40  30~300
  65  6~60  50~500
  80  13~130  70~700
  100  20~200  100~1000
  125  36~360  150~1500
  150  50~500  200~2000
  200  100~1000  400~4000
  250  150~1500  600~6000
  300  200~2000  1000~10000

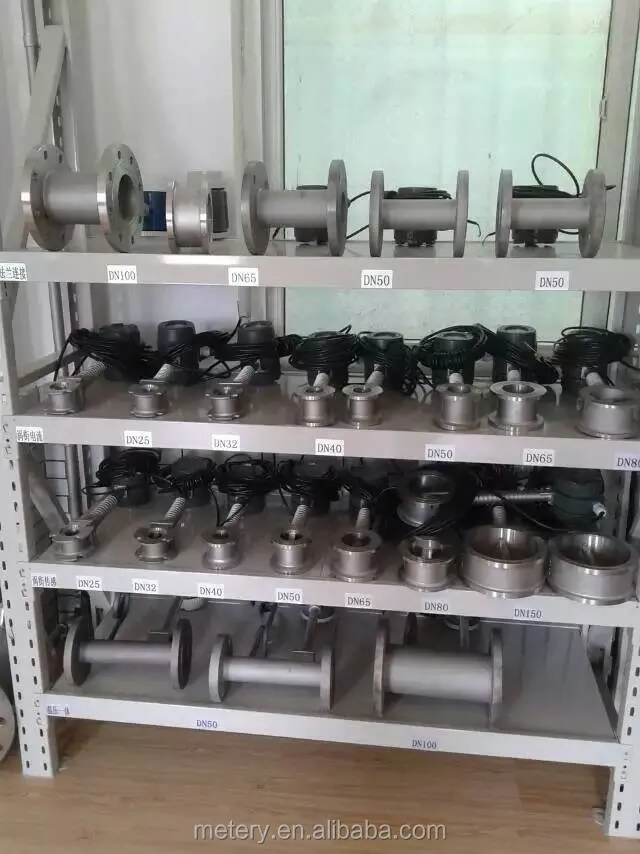

Workshop and warehouse


QQ20150815121033

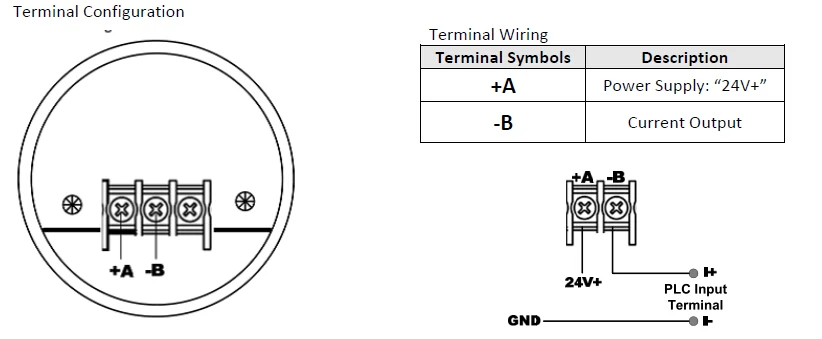

Electrical Wiring Diagram

pulase output wiring

4-20mA output no local display



  vortex flow meter circuit

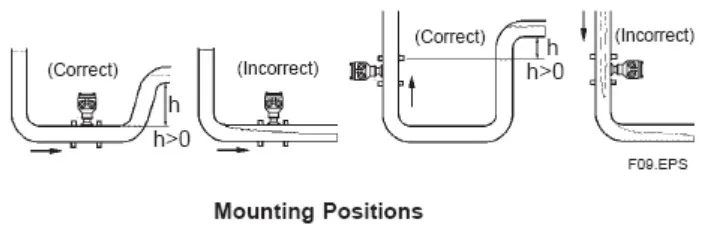

Installation cautions

  Pipes must be fully filled with liquids, it is essential that pipes remain fully filled at all times, other ise flow rate

indications may be affected and measurement errorsmay be caused.

  11



  Avoids air bubbles. if air bubbles enter a measurement pipe, flow rate indications may be affected and measurement

errors may be caused.



1
