Digital indicator Vortex butane gas flow meter

FOB Reference Price:Get Latest Price
US $200-2,000 / Pieces | 1 Piece/Pieces Digital indicator Vortex butane gas flow meter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
Metery
Model Number:
MT100VX
Product Name:
Digital indicator Vortex butane gas flow meter
Measured Mediums:
liquids, gases and steams
Pressure of Mediums:
1.6MPa, 2.5MPa, 4.0 MPa
Output Signal:
pulse or 4-20mA
Temperature of Mediums:
- 40°C ~ + 350°C
Power Supply:
+12-24VDC
Diameter:
DN25-300mm
Accuracy::
1.0; 1.5
Flow Range:
Gases: 4.0 ~ 60.0 m/s;Steams
Delivery time:
3-7 Days
Supply Ability
Supply Ability:
100 Piece/Pieces per Day Digital indicator Vortex butane gas flow meter
Packaging & Delivery
Packaging Details
Cartons of Vortex flow meter with Data Logger
Port
Dalian

1. Vortex flow meter with Data Logger

2.Power consumption:<13W
3.Protection class:IP6
4.CE/ISO/TUV/BQC approved


Packaging & Shipping



Packaging Detail:Export standard packing according to buyer's requirements for  LPG/Liquefied Petroleum gas flow meter
Delivery Detail:one week after received L/C at sight or T/T for  LPG/Liquefied Petroleum gas flow meter



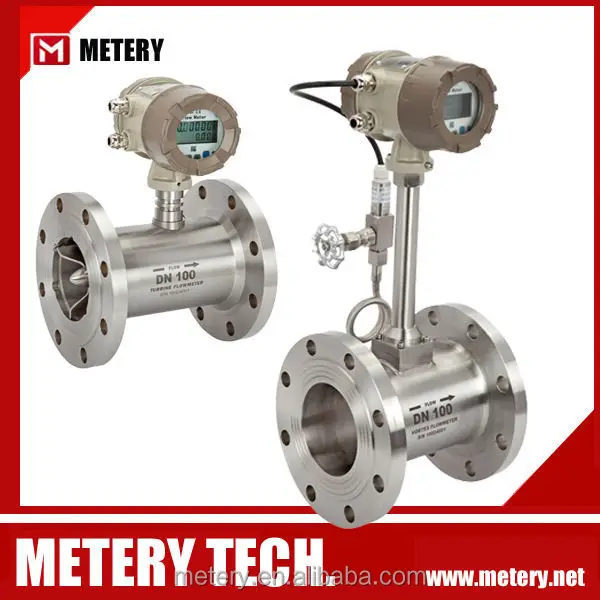

                                                           Digital indicator Vortex butane gas flow meter

 turbineflow meter\

Application of  Digital indicator Vortex butane gas flow meter

Vortex flow meter is used to meausre kinds of steam, gas, air and low viscosity liquid.

Introduction of  Digital indicator Vortex butane gas flow meter

According to Carmen and Strouhal relevant spiral produce and on the theory of the flow relationship. As shown in picture, In the meter body vertical insert a triangular prism root namely the happening of the body, when eddies of medium flow through the table body, in triangular prism behind the alternate produce in opposite directions regular karman swirl,its spiral separation and the flow of the medium frequency F speed by sensing head is proportional to the V detected the number of spiral,can measure the flow velocity,again according tp the table body mouth.

Features of  Digital indicator Vortex butane gas flow meter

  1. Flange&body: integrally forged pieces, it will avoid break down into pieces. 100% SS304 material,we can provide material report.
  2. Circuit Board: Digital circuit board,anti most of the supplier use analog circuit board,digital circuit board enjoy the advantages of anti-vibration and anti-interference.
  3. Flow converter: Distinctive modular design, amateurs can operate, disassemble and assemble easily, it will avoid accident risks.
  4. Welding: adopt the advanced fish scale technology,which makes the welding seam looks nice and smooth.
  5. Japan OVAL technology with embedded-type sensor, triangular prism will not fall off, we already apply for patent.
  6. Our medium temperature sensor can measure highest temperature around 350℃,normal it is -40~250℃



 Where to Use Vortex Flow Meters

  • Measurement of steam - saturated steam in power plants and chemical facilities.
  • Gas flow measurement – natural gas, ammonia, nitrogen, carbon dioxide, methane, methane chloride.
  • Demineralized and pure water in biotech, semiconductor, and pharmaceutical.
  • Air flow measurement – dust control and compressed air consumption.
  • Oil and crude methanol up to 100 centipoises.
  •  HVAC
  • Food processing

Technical Specifications of Vortex Flow Meter:



  Normal diameterDN15,20,25,40,50,65,80,100,125,150,200,250,300mm
  Suitable mediumGas     Liquid     Steam
  Measuring medium   temperature range-40°C-150°C;-40°C-280°C;-40°C-350°C;-40°C-350°C
  Normal pressure2.5Mpa   (>2.5Mpa Special order)
  Accuracy classClass 1, Class 0.5 (Note:Measuring range of class0.5≥1:7)
  Measurement rangeTo see sheet 3,sheet5 , sheet6
  Output signalVoltage pulse: low voltage ≤1V, high voltage≥6v,pulse period ;0.4ms, loading  resistance>150Ω; 4-20mA:exchanged accuracy ±0.5% of total value ,loading resistance 19V≤350Ω , 24V≤ 500Ω;30V≤750Ω;The LCD display on site :Instantaneous flow display:6bits , (m3/h or kg/h, t/h) ,Exchanged accuracy ±0.1% , Accumulative flow display: 8 bits ,(m3, kg, t), Exchange accuracy ±0.1%
  Power supplyWhen the instrument provides voltage pulse output: +12VDC or +24VDC
When the instrument provides 4-20 mA output : +19VDC or +30VDC
The instrument provide the LCD display on site: the battery supply 3.6V , 1 piece lithium battery of size 5 , its life is over 3 years ; or power supply outside +12VDC or +24VDC ,it can provide LCD display with background light (It should be marked as order.)
24VDC
  Environment TemperatureWhen the instrument provides voltage pulse output :-30°C to +65°C
 When the instrument provides 4-20 mA output : -10°C to +55°C
When the instrument provide the LCD display on site:
-25°C to +55°C
  Anti-blast MarkExiaIICT4; The product's anti-blast certificate no.: CE022019 ;the system anti-blast certificate no.:CE003001
  Instrument material1Gr18Ni9ti (other kinds of materials can be provided according to especial order.)
  Completely intellectualized instrumentOutput signal: volume rate of flow or mass rate of flow in normal condition.
The LCD display on site: Instantaneous rate of flow , pressure, temperature circularly display 6bits ; Accumulative rate of flow display 8 bits condition.

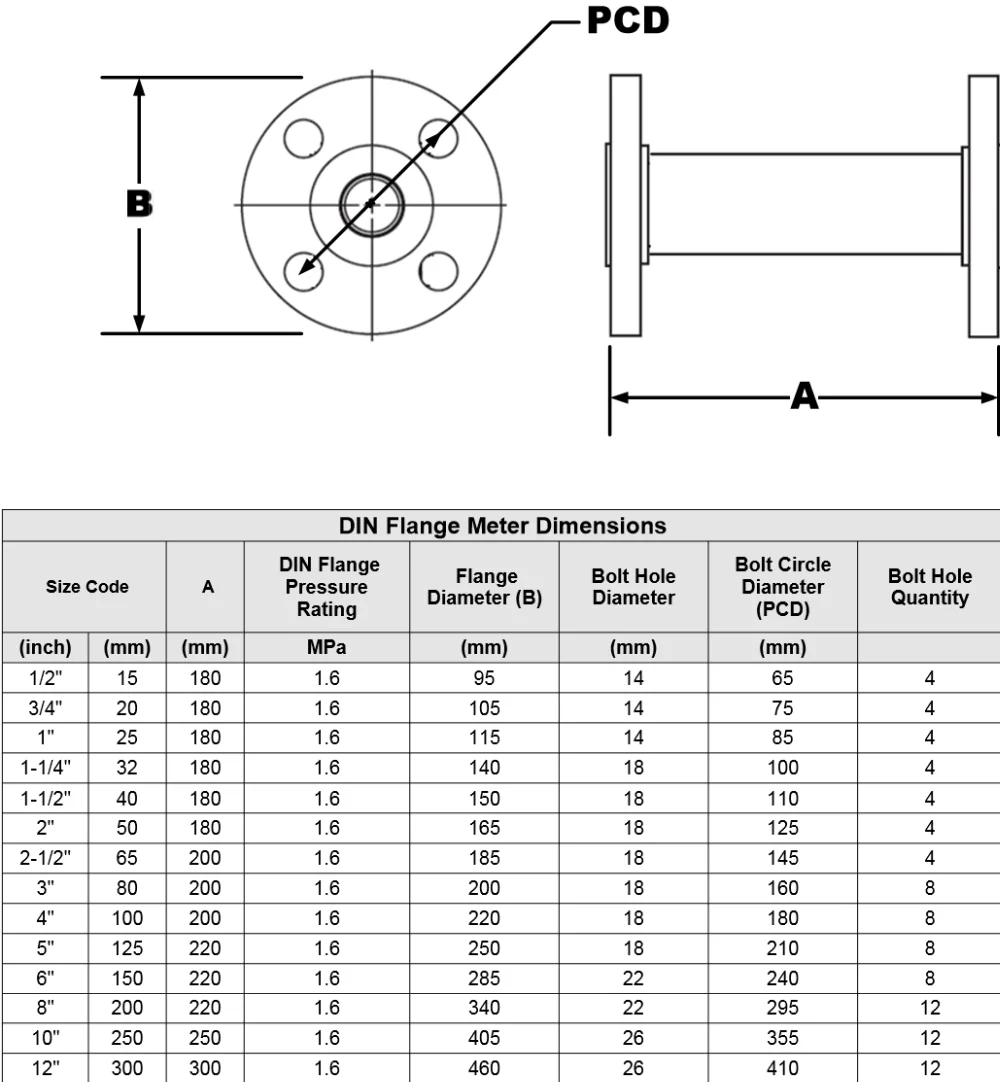

Flange installation for Vortex flow meter with Data Logger
4

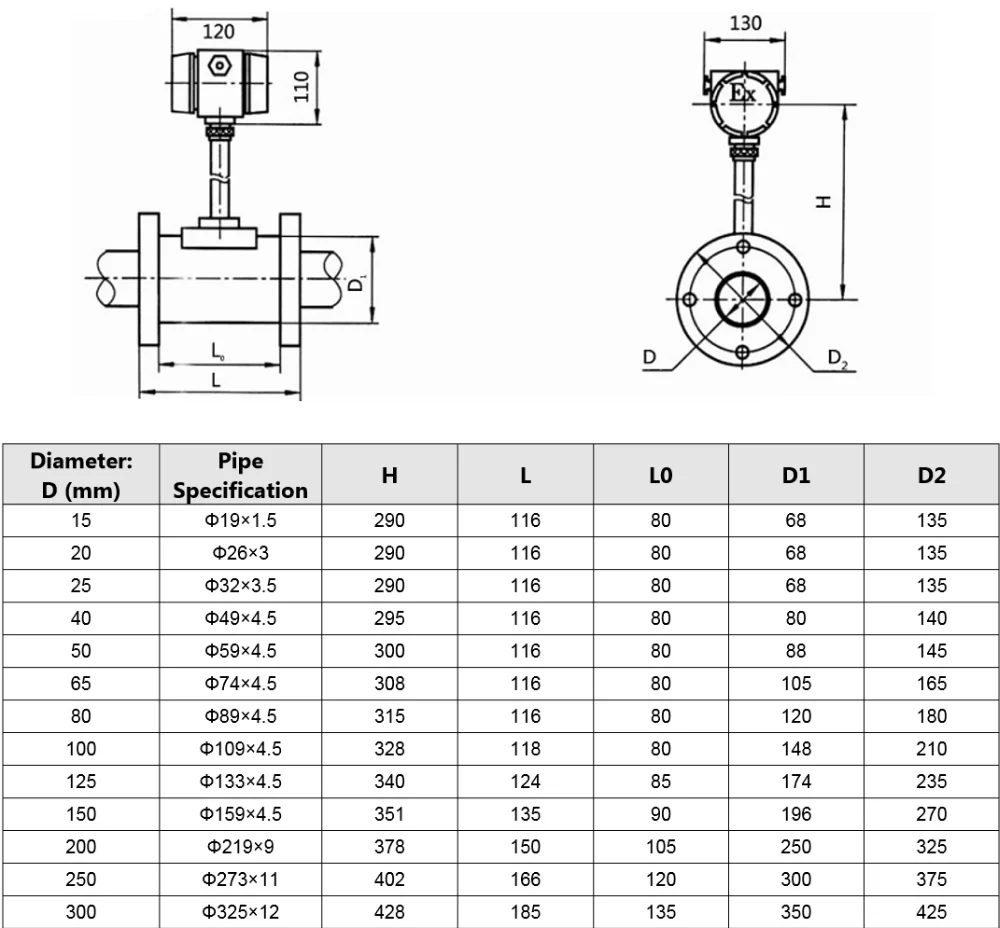

Wafer type installation for  Digital indicator Vortex butane gas flow meter
5

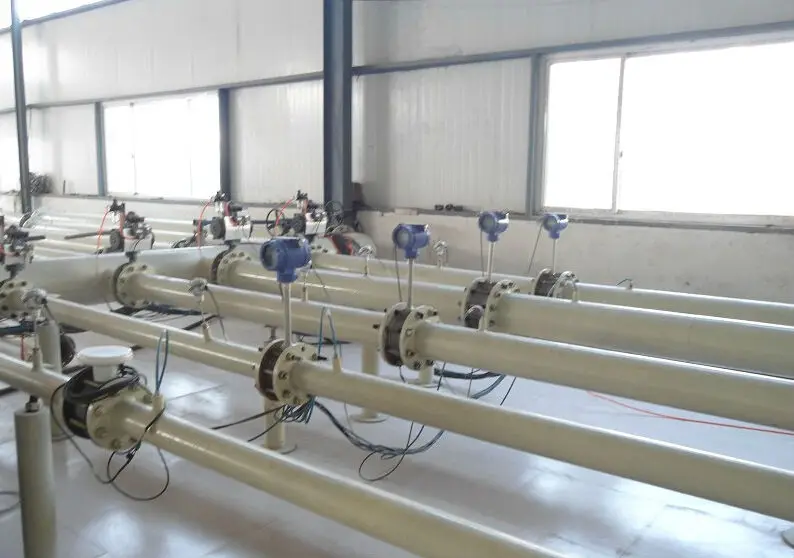

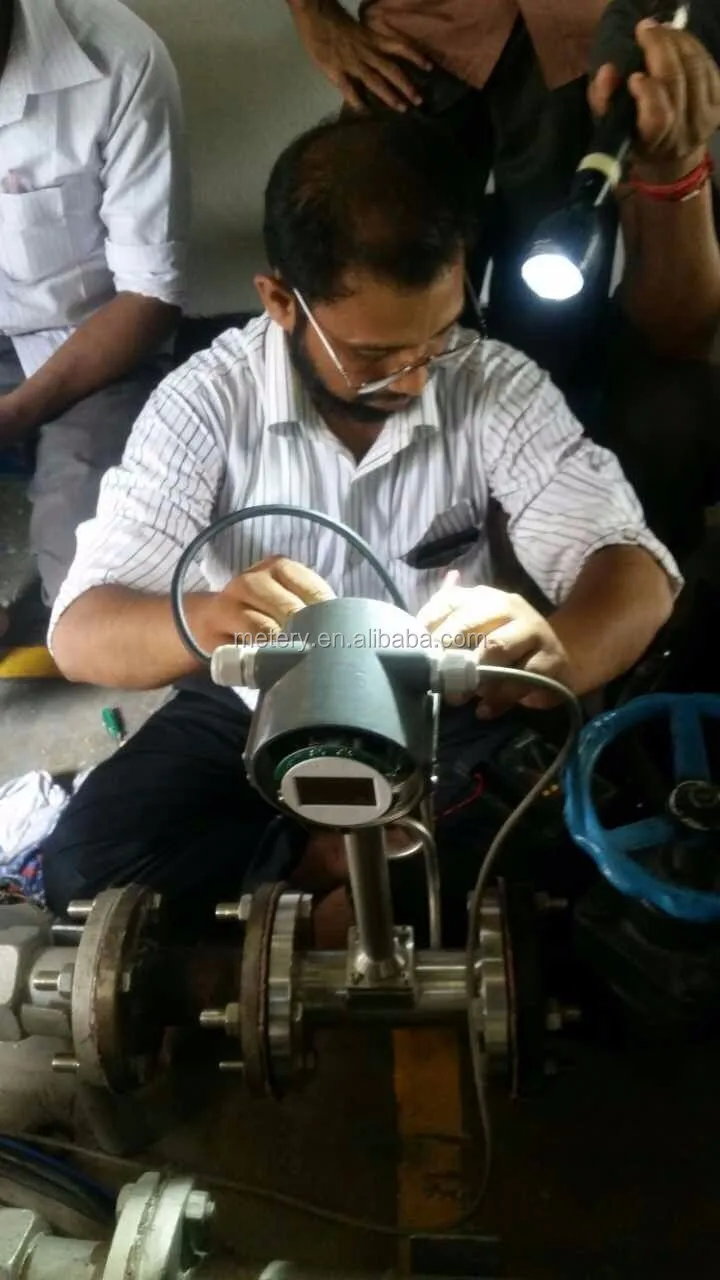

Our customer installration the Vortex flow meter with Data Logger

444
Vortex1
work shop of  Digital indicator Vortex butane gas flow meter
7
 Our customer of  Digital indicator Vortex butane gas flow meter
3
1
Packaging & Shipping



mmexport1432170735249

Our Services


           1. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;

         2. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.


FAQ

Digital indicator Vortex butane gas flow meter

What are Flowmeters?
A flowmeter is an instrument used to measure linear, nonlinear, mass or volumetric flow rate of a liquid or a gas.

Selecting a Flow Meter
The basis of good flowmeter selection is a clear understanding of the requirements of the particular application. Therefore, time should be invested in fully evaluating the nature of the process fluid and of the overall installation.

Here are some key questions which need to answered before selecting a flowmeter:

  • What is the fluid being measured by the flowmeter or flowmeters (air,water,etc)?
  • Do you require rate measurement and/or totalization from the flow meter?
  • If the liquid is not water, what viscosity is the liquid?
  • Is the fluid clean?
  • Do you require a local display on the flow meter or do you need an electronic signal output?
  • What is the minimum and maximum flowrate for the flow meter?
  • What is the minimum and maximum process pressure?
  • What is the minimum and maximum process temperature?
  • Is the fluid chemically compatible with the flowmeter wetted parts?
  • If this is a process application, what is the size of the pipe?
