waterproof clamp on ultrasonic flowmeter

FOB Reference Price:Get Latest Price
US $100-3,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
Model Number:
Brand name:
waterproof clamp on ultrasonic flowmeter
waterproof clamp on ultrasonic flowmeter
Accuracy better than ±1%
Dalian Liaoning
RS-232 (RS485 optional)
Supply Ability
Supply Ability:
100 Set/Sets per Day
Packaging & Delivery
Packaging Details
picking with Cartons for Digital ultrasonic insertion water flow meter
Lead Time :
waterproof clamp on ultrasonic flowmeter

1. ultrasonic transducer sensor

2. Dalian Metery Tech.
3. Protection grade IP65

Packaging & Shipping
Packaging Detail:Paper Carton, with 1 set main unit, 5 meter *2 shielded transducer cable(standard), 1pair of sensors(Clamp-on / Insertion type) in it.
Delivery Detail:10 workdays after reciept of payment for ultrasonic transducer sensor
Product Description

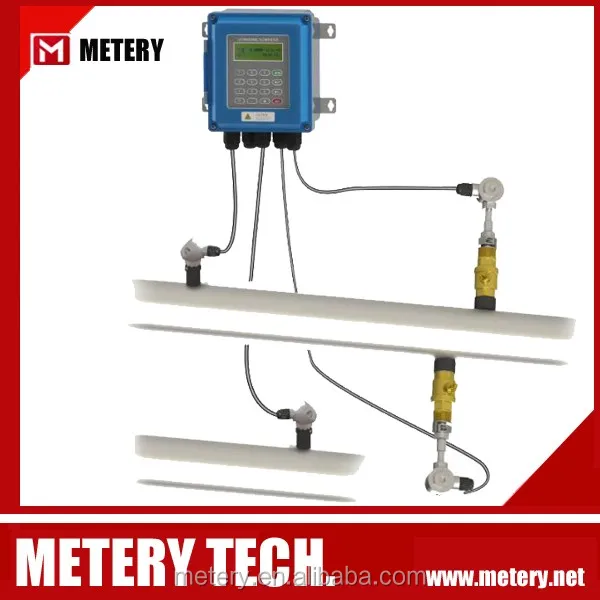

                                              waterproof clamp on ultrasonic flowmeter

MT100Fseries seperate fixed ultrasonic flowmeters are applicable to measure liquid flow in industry application. Mainframe include wall-mounted standard type, wall mounted ex-proof type and panel type. Sensors include clamp-on type, insertion type, inline type.


     water proof3








  • Bidirectional measurement, can measure positive, negative, net cumulative flow
  • Automatic memorize the light cumulative flow of previous 64days, previous 64 months and previous 5 years
  • Automatic memorize the working situation of previous 64 days
  • Automatic memorize power-off period and flow, can proceed manual or automatic detection beyond previous 64 times to decrease flow loss.
  • Programmable batch (quantitative) controller
  • Equipped GPRS/GSM module, can proceed remote control

 Technical parameters:

  • Chinese or English display optional
  • Low voltage, much pulse ultrasonic time difference principle
  • Accuracy better than ±1%, repeatability better than ±0.5%
  • The velocity range 0.01 ~ + 32 m/s
  • Working temperature of host -30°C~80°C
  • Power supply AC220V, DC8~36 or AC7~30V
  • Protection grade IP65
  • Explosion-proof grade EXdllBT$
  • Power consumption 2W
  • Quality 2.5-7kg
  • SEYV75-2 type Special shielded cable (500m max.)


Signal output:                                                    Signal input:

4-20mA or 0-20mA (accuracy ±1% )                                          can input 5 analog current signal AI1…

RS-232 (RS485 optional)                                                           …AI5 (such as temperature, pressure, liquid)

Relay can output nearly 20 kinds of signal sources                    level)

OCT output frequency signals of cumulative flow or heat

pulse signal or instantaneous flow rate (1~9999Hz optional)

Buzzer can alert depends on the set


Optional sensors:

Standard small sensor (magnetic)                                Standard medium sensor(magnetic)

Applicable caliber DN15-100mm                                       Applicable caliber DN50-700mm

Overall dimension 45×30×30mm                                      Overall dimension 60×45×45mm

Quality 75g                                                                             Quality 250g


Standard large sensor

Applicable caliber DN300-6000mm

Overall dimension 80×70×55mm

Quality 528g


Note:  More type of sensors please refer to our sales.



 PIC_20130830_132503_201 1#

waterproof clamp on ultrasonic flowmeter  details


fixed with case.2

waterproof clamp on ultrasonic flowmeter

966 packge1

waterproof clamp on ultrasonic flowmeter



Our factory

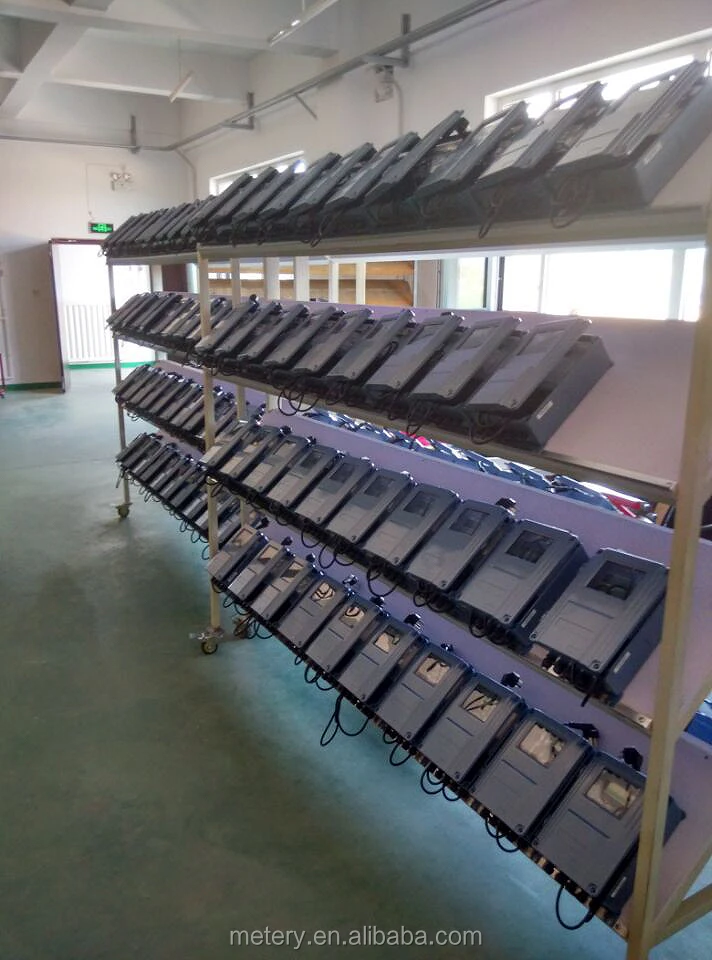

fixed ultrasonic flow meterjpg

Customer visit our factory

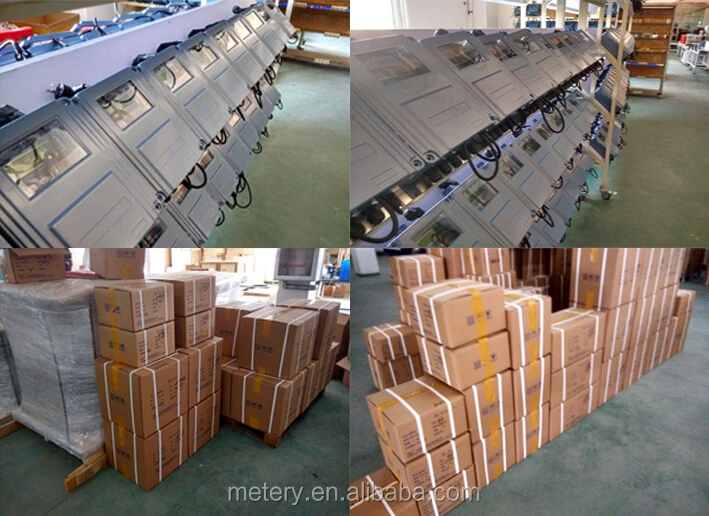

Package of waterproof clamp on ultrasonic flowmeter

Our Services

1.We have aquired ISO, CE,TUV and BQC and other International Certificate;
2.Our flowmeter obtain the APPEARANCE DESIGN PATENT, UTILITITY MODEL PATENT ETC which can distinguish our flowmeter from other suppliers;
3.We have our own QUALITY CONTROL SYSTEM, domestic unique largest-diameter calibration equipment checking ability from DN10 to DN2000; 0-10cubic and 0-65cubic Volumetric Standard;
