Wall Mounted Insertion Ultrasonic Heat Meter

FOB Reference Price:Get Latest Price
US $100-3,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
Metery
Model Number:
MT-100F
Brand name:
Wall Mounted Insertion Ultrasonic Heat Meter
Sort:
Wall Mounted Insertion Ultrasonic Heat Meter
Accuracy:
Accuracy better than ±1%
Origin:
Dalian Liaoning
Caliber:
DN15-6000mm
Customized:
Accepted
Model:
MT101FU
Interface:
RS-232 (RS485 optional)
Package:
Cartons
Supply Ability
Supply Ability:
100 Set/Sets per Day
Packaging & Delivery
Packaging Details
picking with Cartons for Wall Mounted Insertion Ultrasonic Heat Meter
Port
Dalian
Lead Time :
3 days or Wall Mounted Insertion Ultrasonic Heat Meter

Company Information





1.  Low cost ultrasonic water flow meter for garden hose

2. Dalian Metery Tech.
3. Protection grade IP65


Packaging & Shipping
Packaging Detail:Paper Carton, with 1 set main unit, 5 meter *2 shielded transducer cable(standard), 1pair of sensors(Clamp-on / Insertion type) in it.
Delivery Detail:10 workdays after reciept of payment

Product Description

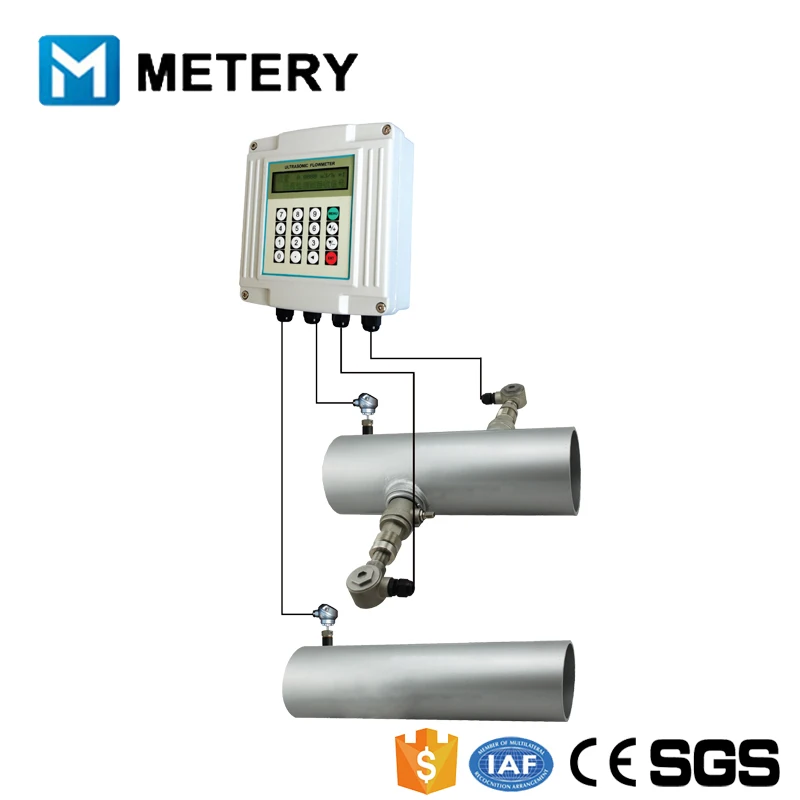

                                       Wall Mounted Insertion Ultrasonic Heat Meter


        insert fixed

install.pipe2install











Features:

  • Bidirectional measurement, can measure positive, negative, net cumulative flow
  • Automatic memorize the light cumulative flow of previous 64days, previous 64 months and previous 5 years
  • Automatic memorize the working situation of previous 64 days
  • Automatic memorize power-off period and flow, can proceed manual or automatic detection beyond previous 64 times to decrease flow loss.
  • Programmable batch (quantitative) controller
  • Equipped GPRS/GSM module, can proceed remote control

 Technical parameters:

  • Chinese or English display optional
  • Low voltage, much pulse ultrasonic time difference principle
  • Accuracy better than ±1%, repeatability better than ±0.5%
  • The velocity range 0.01 ~ + 32 m/s
  • Working temperature of host -30°C~80°C
  • Power supply AC220V, DC8~36 or AC7~30V
  • Protection grade IP65
  • Explosion-proof grade EXdllBT$
  • Power consumption 2W
  • Quality 2.5-7kg
  • SEYV75-2 type Special shielded cable (500m max.)



Signal output:                                                    Signal input:

4-20mA or 0-20mA (accuracy ±1% )                                          can input 5 analog current signal AI1…

RS-232 (RS485 optional)                                                           …AI5 (such as temperature, pressure, liquid)

Relay can output nearly 20 kinds of signal sources                    level)

OCT output frequency signals of cumulative flow or heat

pulse signal or instantaneous flow rate (1~9999Hz optional)

Buzzer can alert depends on the set



Optional sensors:

Standard small sensor (magnetic)                                Standard medium sensor(magnetic)

Applicable caliber DN15-100mm                                       Applicable caliber DN50-700mm

Overall dimension 45×30×30mm                                      Overall dimension 60×45×45mm

Quality 75g                                                                             Quality 250g



Standard large sensor

Applicable caliber DN300-6000mm

Overall dimension 80×70×55mm

Quality 528g



Note:  More type of sensors please refer to our sales.





 PIC_20130830_132503_201 1#

Our Wall Mounted Insertion Ultrasonic Heat Meter details



fixed with case.2



966 packge1



36



Our factory

fixed ultrasonic flow meterjpg

Customer visit our factory

Package of Wall Mounted Insertion Ultrasonic Heat Meter


Our Services

1.We have aquired ISO, CE,TUV and BQC and other International Certificate;
2.Our flowmeter obtain the APPEARANCE DESIGN PATENT, UTILITITY MODEL PATENT ETC which can distinguish our flowmeter from other suppliers;
3.We have our own QUALITY CONTROL SYSTEM, domestic unique largest-diameter calibration equipment checking ability from DN10 to DN2000; 0-10cubic and 0-65cubic Volumetric Standard;
